HD Endoscopy Camera System CAMERA TROLLEY CABLE AND monitor Medical optics Equipment HIGH QUALITY
產(chǎn)品概述 :

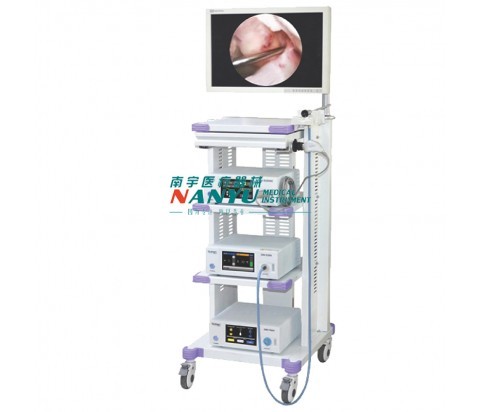

ENDOSCOPY CAMERA SYSTEM

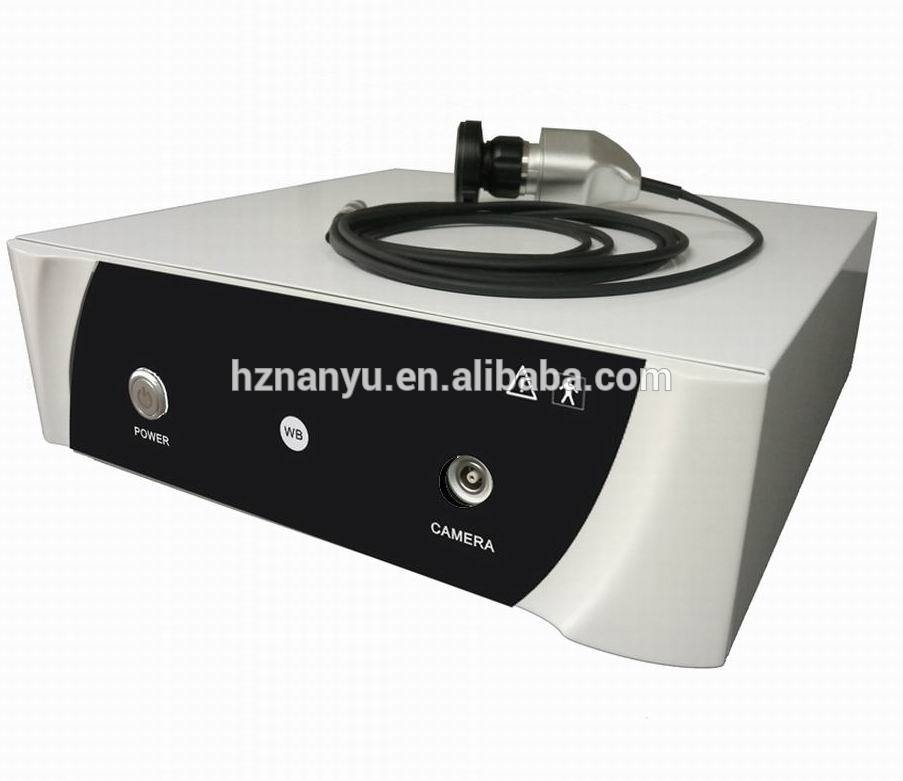

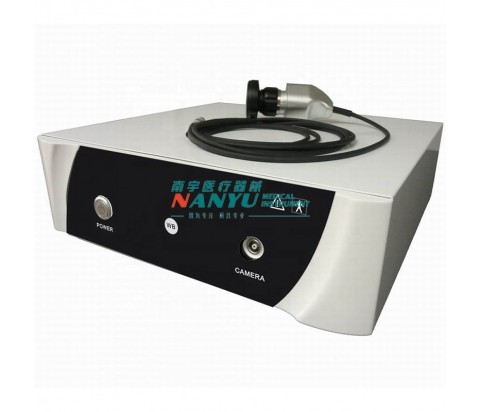

CAMERA

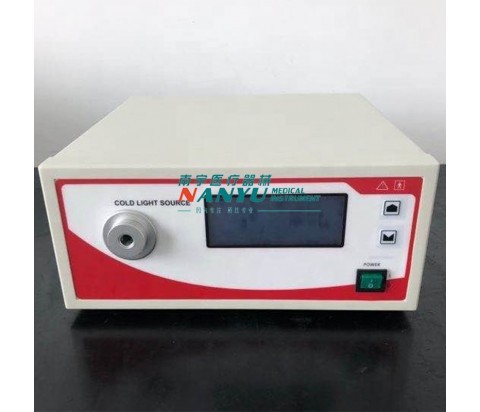

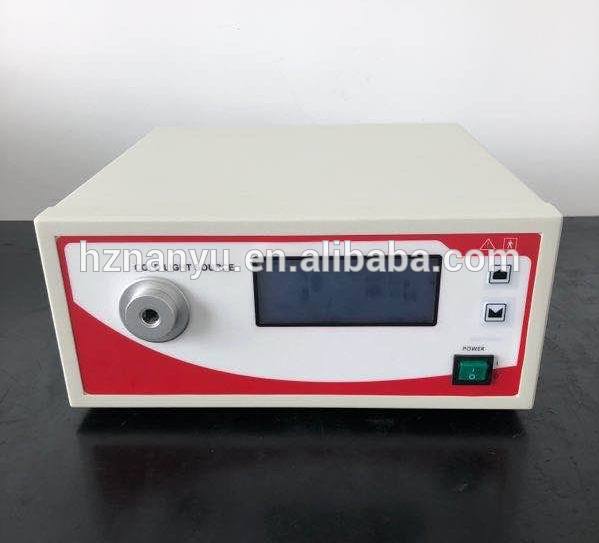

LED COLD LIGHT SOURCE

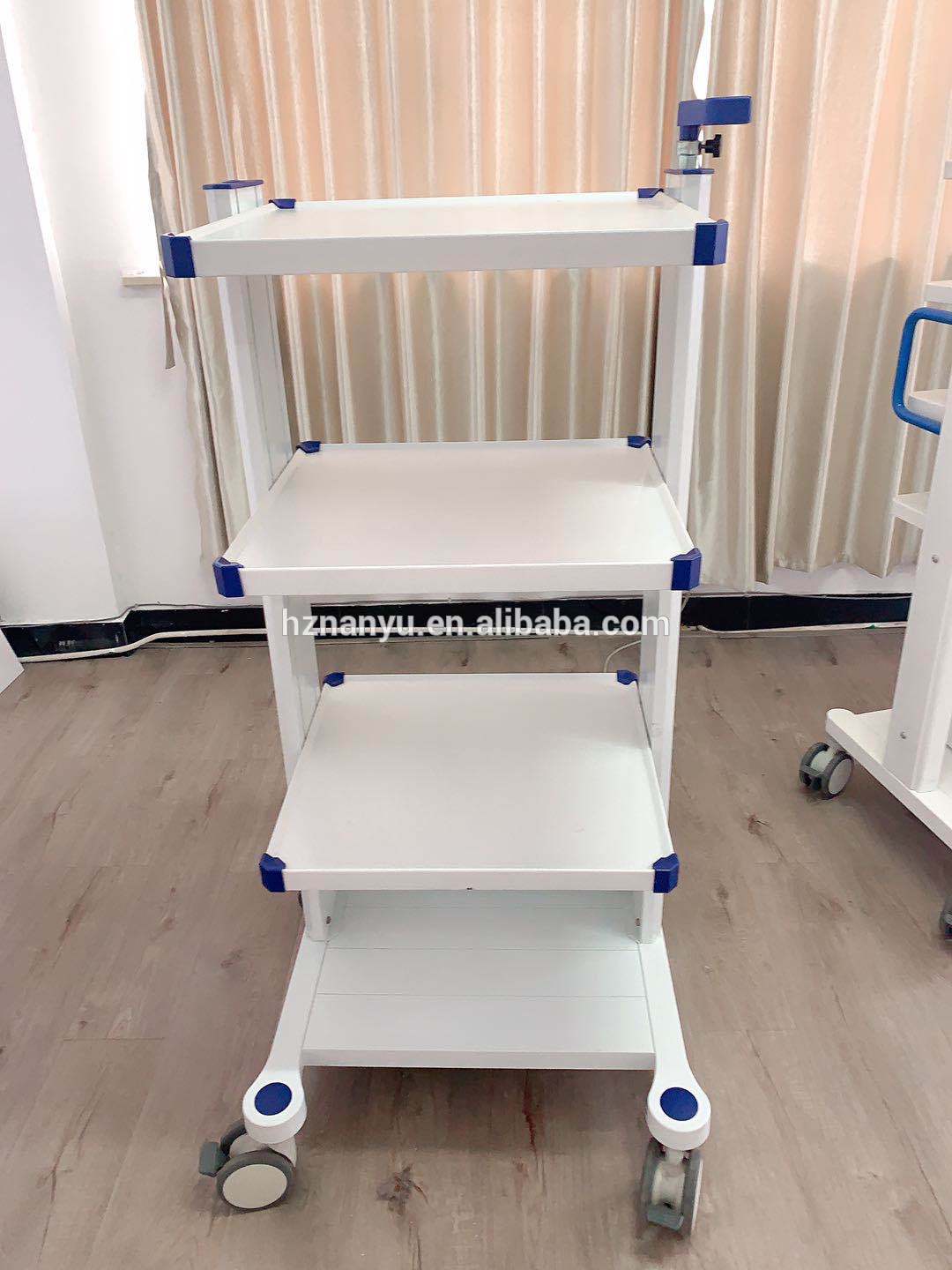

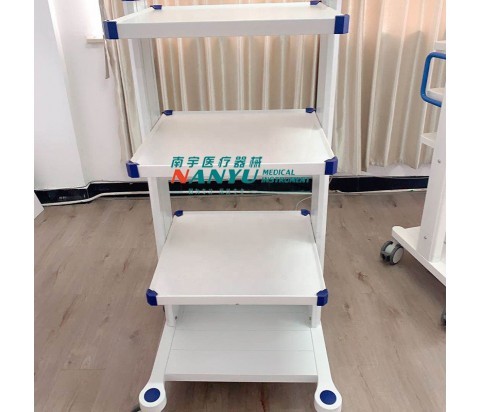

TROLLEY

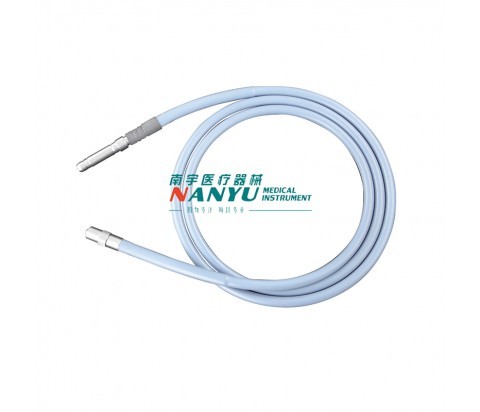

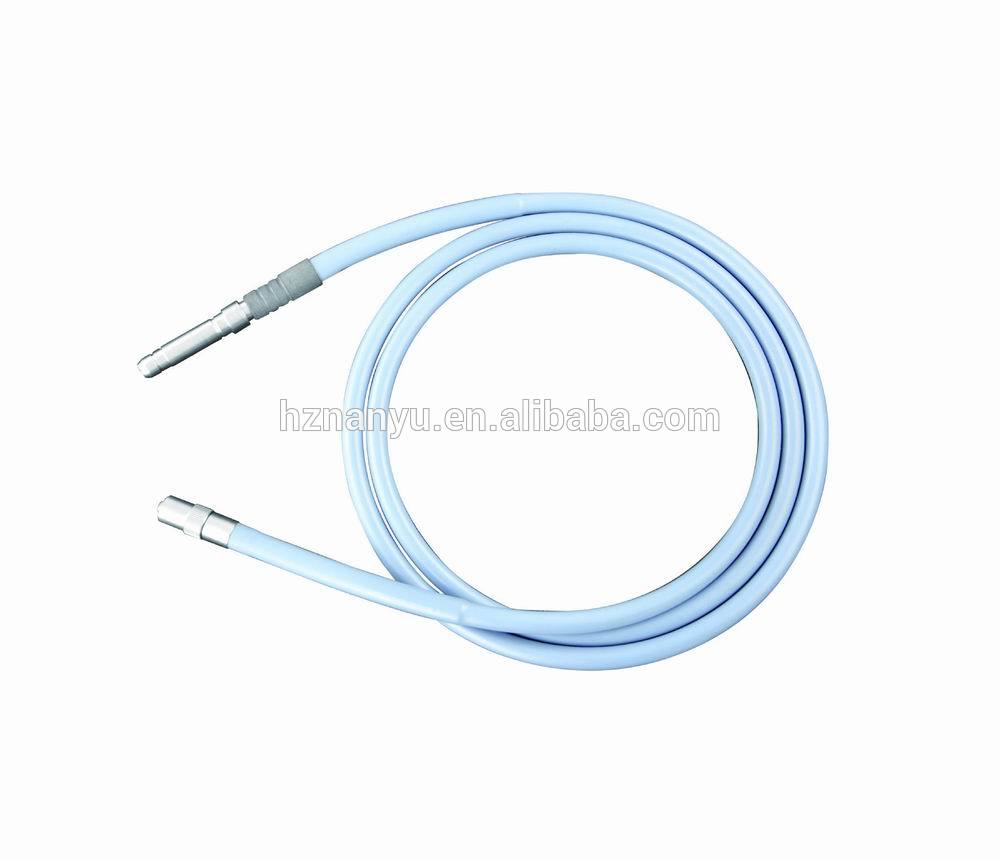

LIGHT CABLE
Pls see the technical parameter as below
Endoscopy camera system
Main technical paremeter
Sx-hd1080 medical endoscope camera system | ||
1. | sensor | SONY 1/2.8 SUPER HAD CMOS |
2 | pixel | 1920*1080(1080P) |
3 | definition | ≥1100line |
4 | Minimum illumination | 0.1LUX |
5 | white balance | Automatic / manual setting |
6 | Signal to noise ratio | 60DB(max) |
7 | Optical interface | F20 |
8
|
Menu function | Image setting: one key freezing and 10 times electronic magnification; brightness, sharpness, color concentration, gain, etc |
System settings: white balance, freezing, digital amplification, dynamic wide dynamic, edge brightness compensation, etc | ||
Endoscopic mode selection: no less than seven operation modes such as otolaryngoscope, laparoscopy and hysteroscopy are switched and preserved (leading in China); | ||
9 | Adjustment method | OSD(on-screen display)manu |
10 | Video output | One HDMI, one DVI, two CVBS |
27 inch LCD monitor | ||
1 | LCD screen | 27 inch LCD monitor |
2 | resolution ratio | 1920*1200 |
3 | ratio | 16:9 |
4 | colour | 1.07B |
5 | brightness | 350±10% cd/m2 |
6 | Maximum brightness | 550cd/m2 |
7 | contrast ratio | 1000:1 |
8 | viewing angle | 178/178 |
9 | response time | 8ms |
10 | Input interface | DVI/VGA/VIDEO/S-VIDEO/RGB/YPBPR/HDMI |
11 | Output interface | DVI/RGB/YPBPR/VIDEO/S-VIDEO/HDMI |
12 | Screen type | CCFL IPS |
